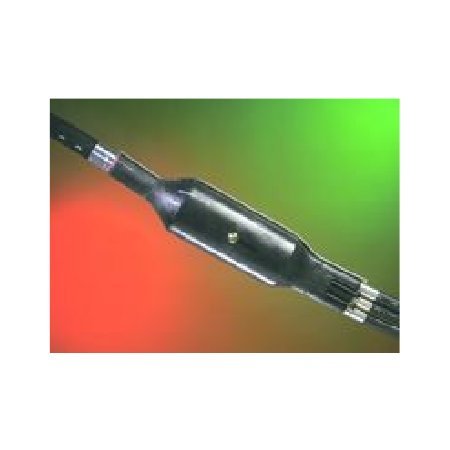

Thermo Shrink Jointing Kits
The thermoshrink jointing closure system is used to provide enviourmental & mechanical protection for the copper cable joint.
The application of the joint closure is employed in undergroung,ducted& direct buried,aerial,in line & branch cable in unpressurised cable network.
This joint closure system is applicable for the jointing of the cable ranging from 5 pair to 1600 pair .
Conductors dia can be varied from 0.4 mm to 0.9 mm.
The measure component of the closure system is thermo shrink sleeve which is for sealing purpose of the joint by using heat shrink technology.
The sleeve can be used from the cable diameter minimum 8 mm upto 160 mm.
The cable cleaning liquid is provided for cleaning of the conductors before splicing.
To protect the splicing from any water or moisture entry,the joint is embedded in the splice filling compound.
The insulating tape(PVC) & the sealant tape is provided for teing the bunch of splicing embedded in the splice filling compound.Polyster tape can be wrap at the sleeve ends while the joint is in hot condition.
Aluminium Cannistor for giving mechanical protection to the joint.
Small accessories like cleaning tissue for cleaning the cable,Emery strip for rubbing the cable ,Aluminium foil for protecting the cable while heat shrinking are provided along with the kit.
Branch of clip can be use for sealing the gap between the cable in branching network.
To maintain the continuity of the polyal sheath,sheath connector assembly is provided.
Incase of an armoured cable, continuity can be maintain with the help of the Armour Continuity Wire.
